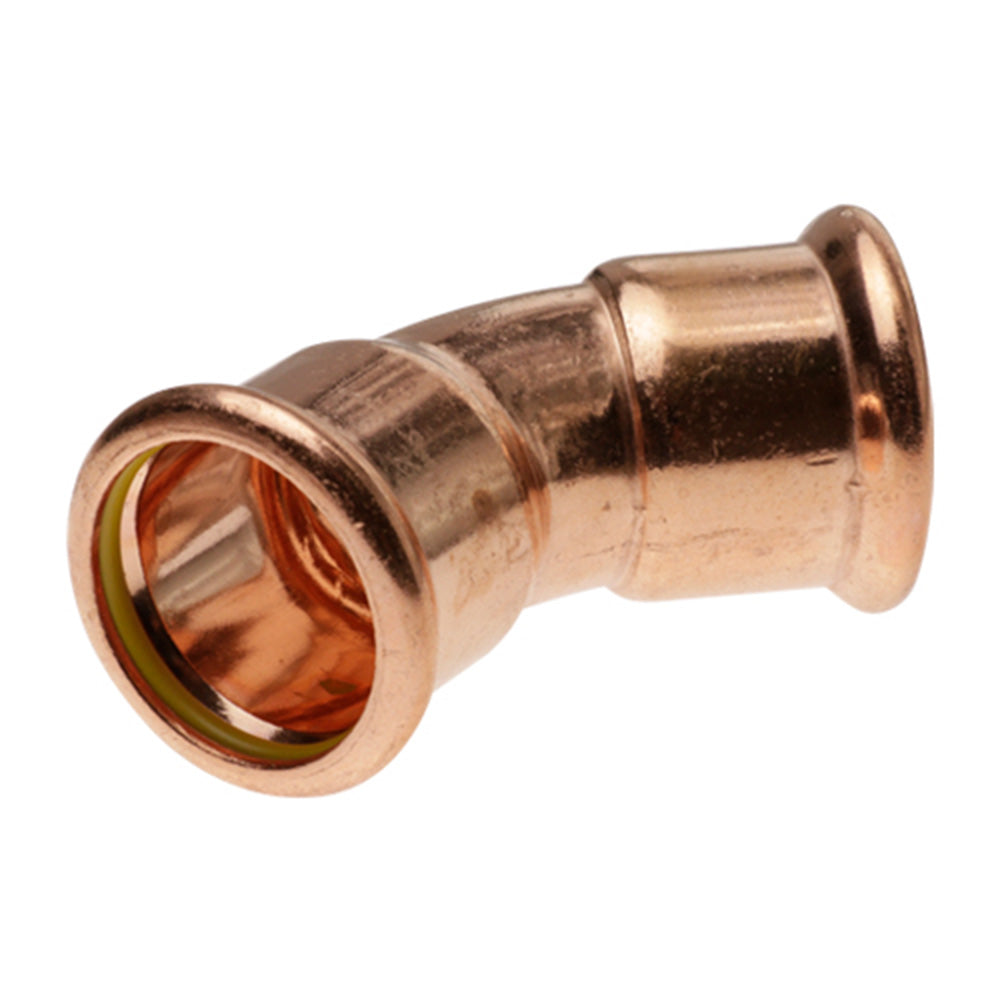

Navigator Press Fit Gas 45 Degree Equal Elbow 35mm Copper PFGE/45-35
This efficient and durable jointing system is a safer option than solder or compression fittings, as it does not need a flame.
Read more- Changes direction of copper gas pipes
- Quality M profile PressFitting compatible with M profile press systems
- Cost-effective installation as easy to use
- Suitable for use with gas systems
- 20 Year Guarantee
- GVDW approved
View all products by Navigator
Description
The Press Fit Gas 45 Degree Equal Elbow is made of copper with a yellow EPDM olive and has a 35mm diameter. It holds BSI Kitemark KM 768668 & GVDW approvals. The operating pressure is 16 bar at -24C to +110C and it comes with a 20 year guarantee. The Navigator Press Fit Gas fittings range is suitable for use with gas systems, providing a lower installation cost, and a permanent, tamper proof joint. This efficient and durable jointing system is a safer option than solder or compression fittings, as it does not need a flame. It is also quicker to install. Use certified copper tube to give long-lasting and leak-free joints.
- Changes direction of copper gas pipes
- Quality M profile PressFitting compatible with M profile press systems
- Cost-effective installation as easy to use
- Suitable for use with gas systems
- 20 Year Guarantee
- GVDW approved
- Compatible with copper pipes only
- Durable and efficient press-fit connection for copper pipes
- Safer and flame-free copper tube jointing system
* See technical attachments for more details.
