Product code: P000385

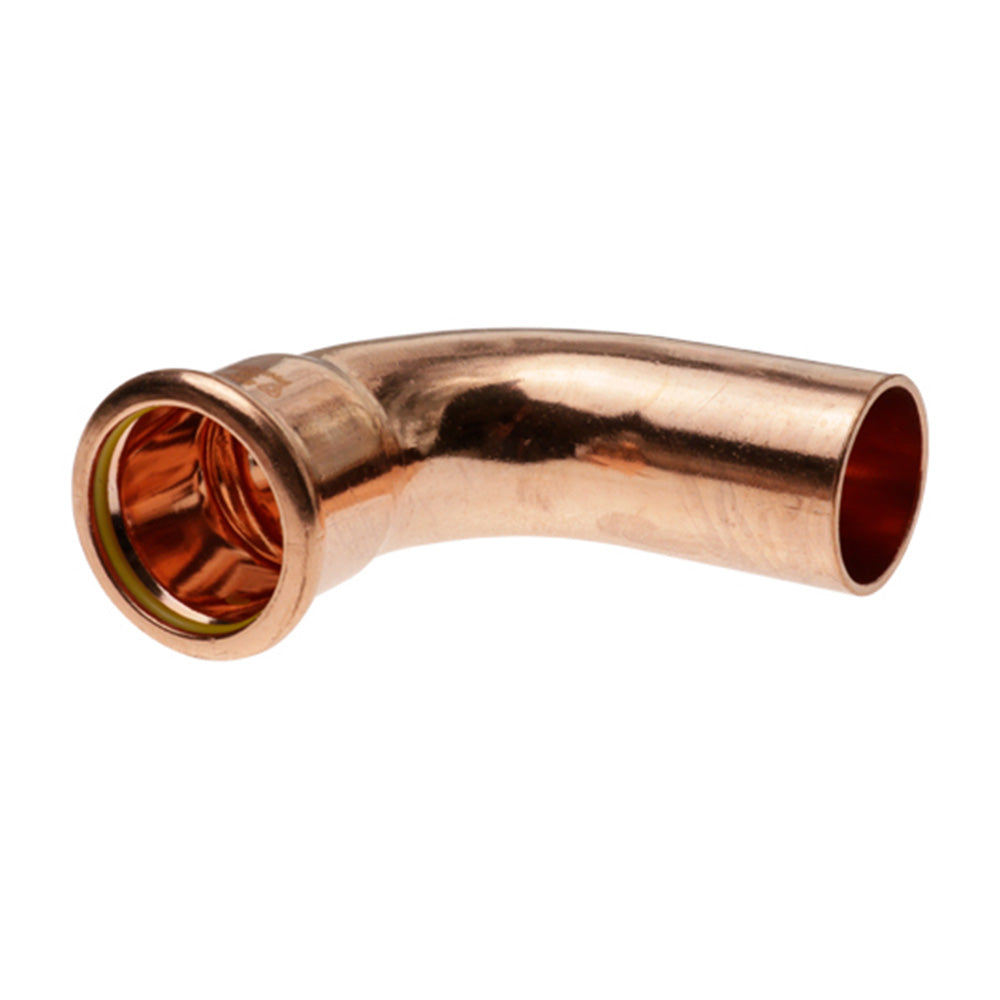

Press Fit Gas 90 Degree Street Elbow 15mm Copper PFGES-15

The Press Fit Gas 90 Degree Street Equal Elbow is made of copper with a yellow EPDM olive and has a 15mm diameter.

Read more
  • Changes direction of copper gas pipes
  • Quality M profile PressFitting compatible with M profile press systems
  • Male and female connections
  • Cost-effective installation as easy to use
  • Suitable for use with gas systems
  • 20 Year Guarantee

This product will be available soon, please contact us for more information on this product.

Description

The Press Fit Gas 90 Degree Street Equal Elbow is made of copper with a yellow EPDM olive and has a 15mm diameter. It holds BSI Kitemark KM 768668 & GVDW approvals. The operating pressure is 16 bar at -24C to +110C and it comes with a 20 year guarantee. The Navigator Press Fit Gas fittings range is suitable for use with gas systems, providing a lower installation cost, and a permanent, tamper proof joint. This efficient and durable jointing system is a safer option than solder or compression fittings, as it does not need a flame. It is also quicker to install. Use certified copper tube to give long-lasting and leak-free joints.

  • Changes direction of copper gas pipes
  • Quality M profile PressFitting compatible with M profile press systems
  • Male and female connections
  • Cost-effective installation as easy to use
  • Suitable for use with gas systems
  • 20 Year Guarantee
  • GVDW approved
  • Compatible with copper pipes only
  • Durable and efficient press-fit connection for copper pipes
  • Safer and flame-free copper tube jointing system

Specification

Adapting/ Equal/ Reducing Equal
Angle 90°
Brand Navigator MSL
CE Standard (Tested to EN…) BSI Kitemark KM 768668 & GVDW
Colour Copper
Connection Type Press Fit
Manufacturer Guarantee/ Manufacturer Warranty 20 Year Guarantee
Manufacturer's Model No PFGES-15
Max. Operating Temperature 110°C
Max. Working Pressure 16 bar
Pipe Fitting System Press-Fit
Product Diameter 15mm
Range Description Navigator Press Fit Gas Fittings
Suitable System Suitable for Gas Systems
Type Copper Press Fit Street Elbow

Visit your local branch or contact us for more information.

Downloads

Data Sheet
