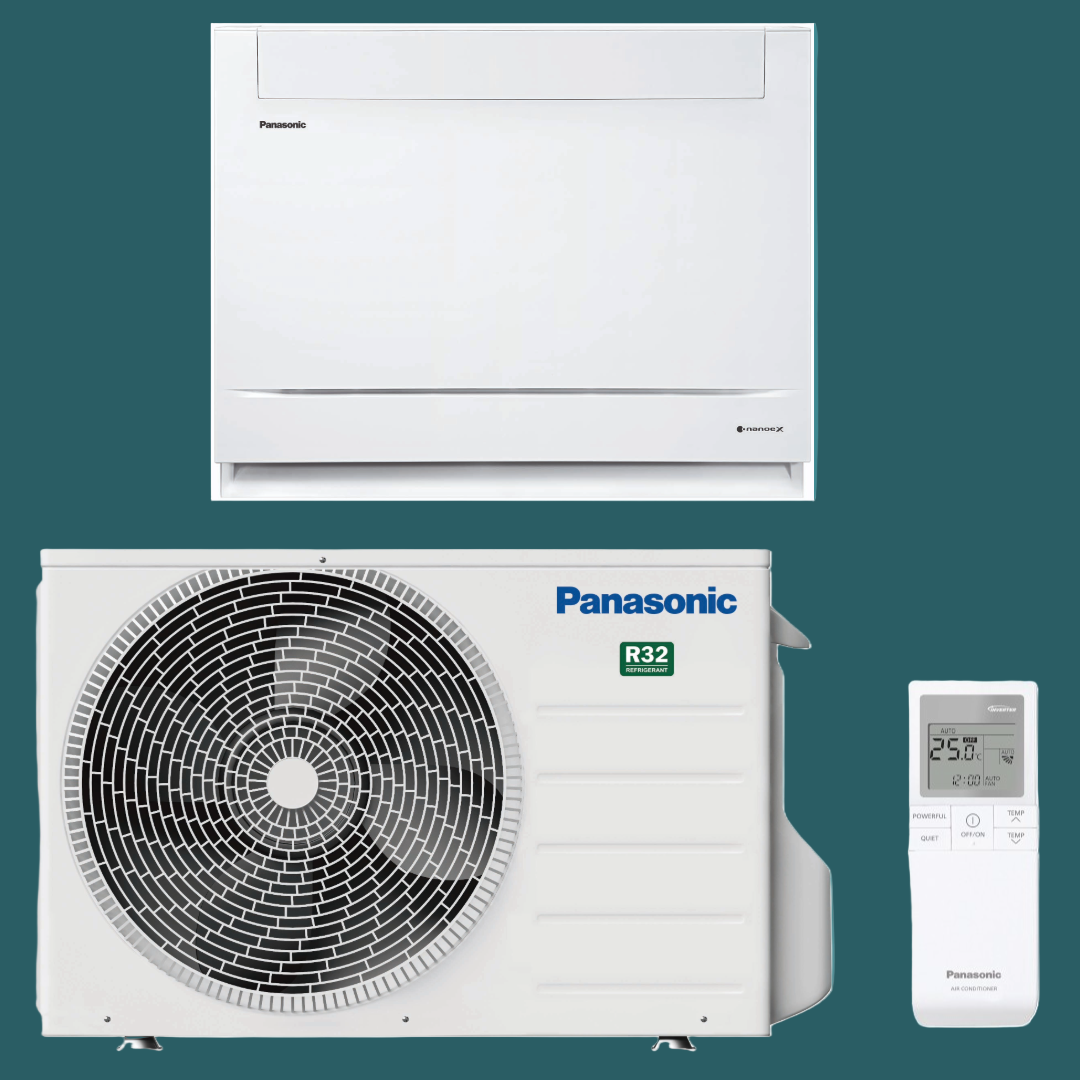

Panasonic Floor Console - R32
The Panasonic Floor Console range combines superquiet operation, nanoe™ X air purification, and A++ energy efficiency to deliver year-round comfort and healthier indoor air. Operating at just 20dB(A), these consoles ensure whisper-quiet performance while inhibiting bacteria, viruses, allergens, and odours for a fresher environment. Compatible with eco-friendly R32 refrigerant and powered by Panasonic’s original inverter compressor, they provide reliable heating even at -15°C, reducing operating costs and meeting Europe’s highest standards for comfort, sustainability, and advanced climate control.
|
Model Reference |
Nom. Cool (kW) |
Nom. Heat (kW) |
Max Pipe (m) |
EuP Lot 10 Energy Rating |
Fuse (Amps) |
Pipe Size Gas |
Pipe Size Liquid |
Electrical Supply |
Wi-Fi Control |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | Outdoor Unit | SCOP | SEER | ||||||||
| CS‑Z25UFEAW | CU‑Z25UBEA | 2.50 | 3.40 | 20 | 4.60 | 7.90 | 16 | 3/8 | 1/4 | Single | Optional |
| CS‑Z35UFEAW | CU‑Z35UBEA | 3.50 | 4.30 | 20 | 4.60 | 8.10 | 16 | 3/8 | 1/4 | Single | Optional |
| CS‑Z50UFEAW | CU‑Z50UBEA | 5.00 | 5.80 | 20 | 4.30 | 6.70 | 16 | 1/2 | 1/4 | Single | Optional |
| For more information, see Technical Specifications. |
|||||||||||
Key features
Optional Wi-Fi compatible with Voice Assistant
With optional CZ-TACG1 and Panasonic Comfort Cloud app in your Smartphone manage all functions up to 200 units, have access to energy statistics, set up advance scheduling and define different access rights to other users. This works with Google Assistant and Amazon Alexa.*
* Google, Android, Google Play and Google Home are trademarks of Google LLC. Google Assistant is not available in certain languages and countries. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Availability of Voice Assistant services varies depending on country and language. More information about set up procedures: Panasonic Comfort Cloud & Voice Assistant Set up
nanoe™ X technology for cleaner air
Enjoy cleaner, fresher air with nanoe™ X technology, which uses the power of hydroxyl radicals to purify your indoor environment of bacteria, mould and more, to help create a healthier and more comfortable space all day long. See nanoeX leaflet for more details.

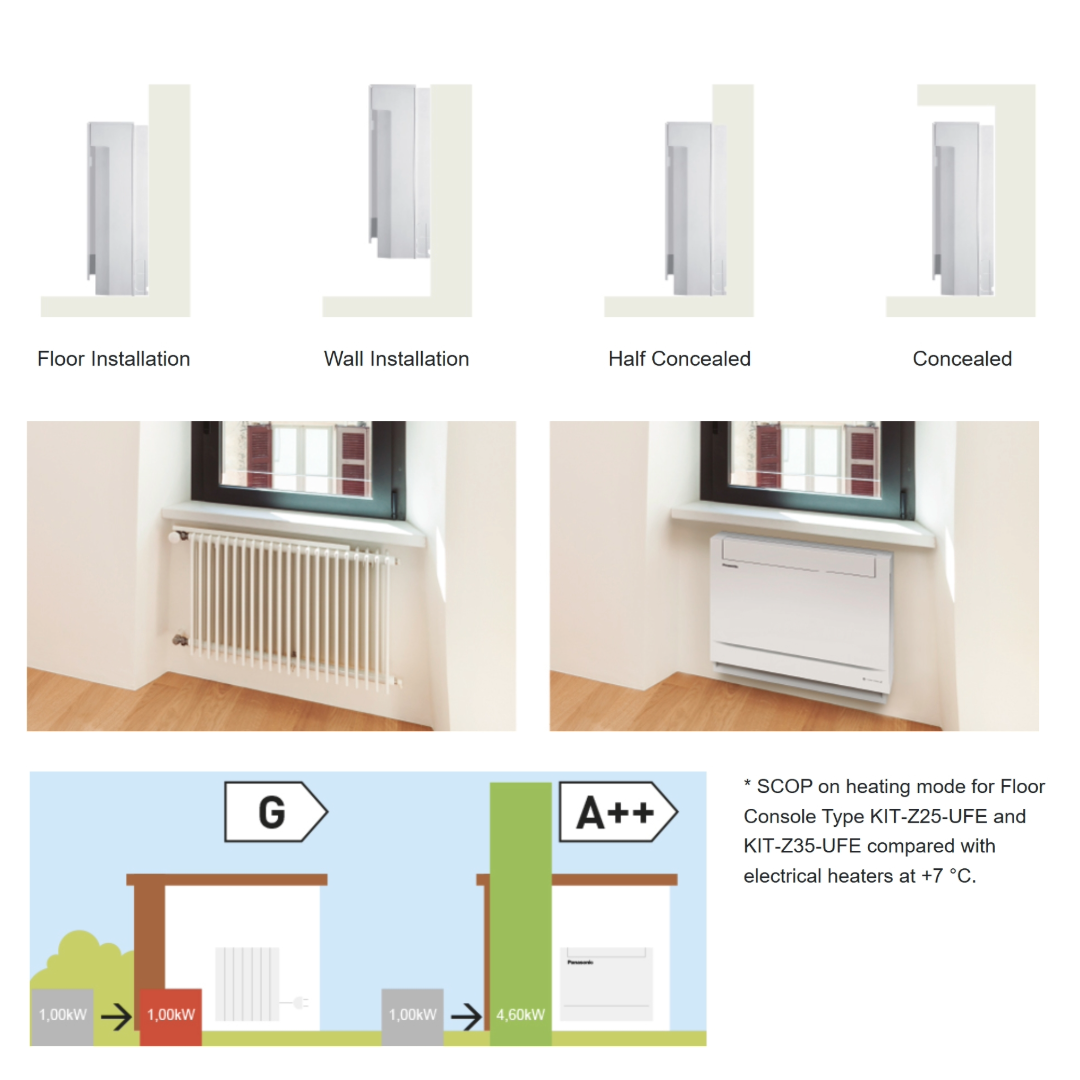

Smart, modern replacement for boiler heating systems

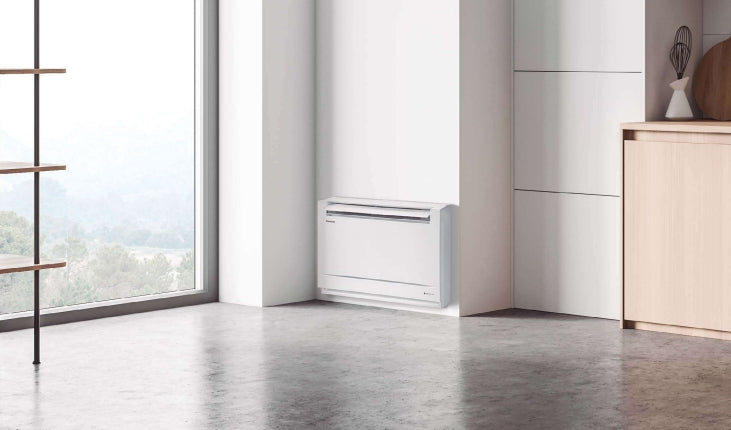

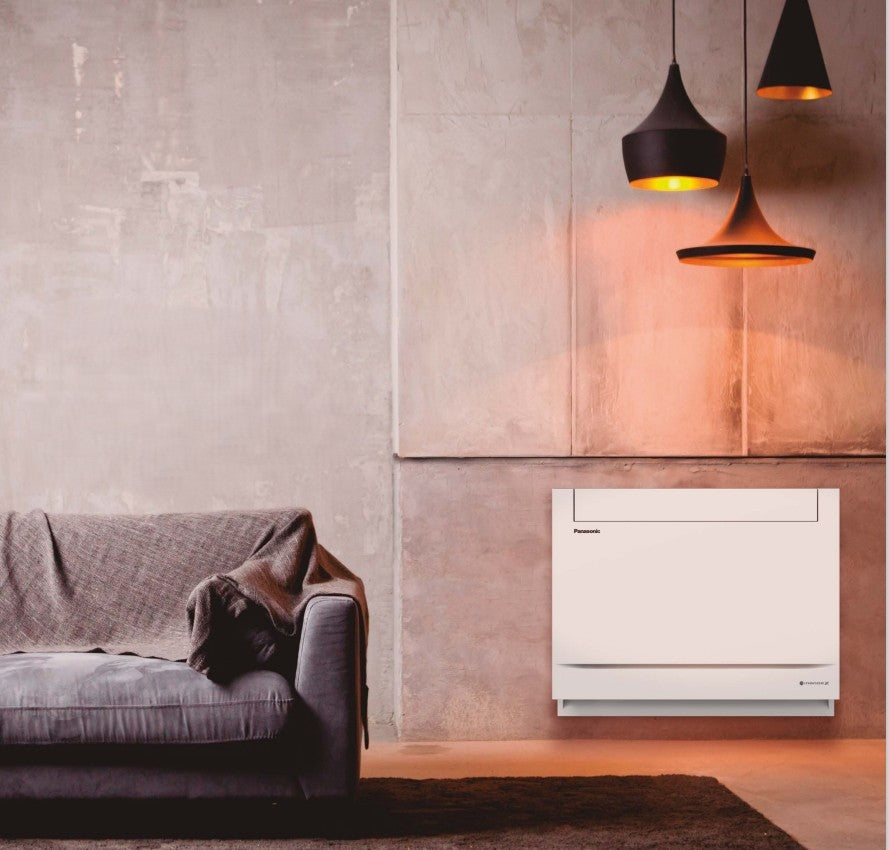

The Panasonic Floor Console is the perfect replacement for old boiler systems, offering a compact, stylish design that blends seamlessly into any home or office. With flexible installation options - floor, wall, half-concealed, or fully concealed - it delivers both elegance and practicality for modern interiors.

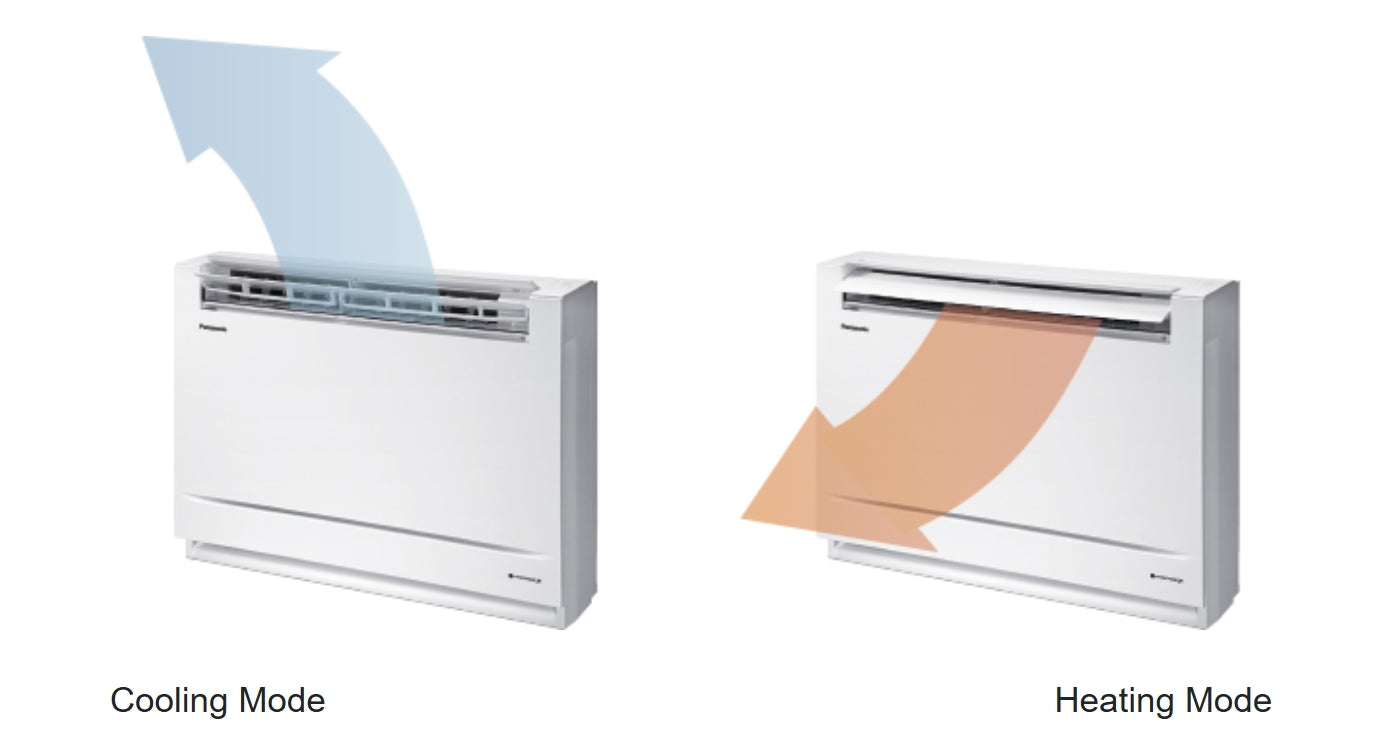

Highly efficient with double airflow technology
Awarded the iF Product Design Award 2019, this stylish unit also delivers super-quiet, highly efficient heating, capturing outdoor heat energy to keep your home or office warm even at -15°C. With double airflow technology, it distributes warm air from both the top and bottom vents for improved comfort and even temperature dispersion throughout the room.
Optional Wi-Fi compatible with Voice Assistant
With optional CZ-TACG1 and Panasonic Comfort Cloud app in your Smartphone manage all functions up to 200 units, have access to energy statistics, set up advance scheduling and define different access rights to other users. This works with Google Assistant and Amazon Alexa.*
* Google, Android, Google Play and Google Home are trademarks of Google LLC. Google Assistant is not available in certain languages and countries. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Availability of Voice Assistant services varies depending on country and language. More information about set up procedures: Panasonic Comfort Cloud & Voice Assistant Set up
nanoe™ X technology for cleaner air
Enjoy cleaner, fresher air with nanoe™ X technology, which uses the power of hydroxyl radicals to purify your indoor environment of bacteria, mould and more, to help create a healthier and more comfortable space all day long. See nanoeX leaflet for more details.
Smart, modern replacement for boiler heating systems
The Panasonic Floor Console is the perfect replacement for old boiler systems, offering a compact, stylish design that blends seamlessly into any home or office. With flexible installation options - floor, wall, half-concealed, or fully concealed - it delivers both elegance and practicality for modern interiors.
Highly efficient with double airflow technology
Awarded the iF Product Design Award 2019, this stylish unit also delivers super-quiet, highly efficient heating, capturing outdoor heat energy to keep your home or office warm even at -15°C. With double airflow technology, it distributes warm air from both the top and bottom vents for improved comfort and even temperature dispersion throughout the room.
Floor Console Indoor Unit Specification Table
| Indoor Unit Technical Data | Model Number | ||
|---|---|---|---|
| CS‑Z25UFEAW | CS‑Z35UFEAW | CS‑Z50UFEAW | |
| Cooling (kW) - Nominal | 2.50 (0.85 - 3.40) | 3.50 (0.85 - 3.80) | 5.00 (0.90 - 5.70) |
| Heating (kW) - Nominal | 3.40 (0.85 - 5.00) | 4.30 (0.85 - 6.00) | 5.80 (0.90 - 8.10) |
| Sound Pressure - Cooling Hi / Lo / Q-Lo (dBA) | 38 / 25 / 20 | 39 / 26 / 20 | 44 / 31 / 27 |
| Sound Pressure - Heating Hi / Lo / Q-Lo (dBA) | 38 / 25 / 19 | 39 / 26 / 19 | 46 / 33 / 29 |
| Height (mm) | 600 | 600 | 600 |
| Width (mm) (dBA) | 750 | 750 | 750 |
| Depth (mm) | 207/td> | 207 | 207 |
| Weight (kg) | 13 | 13 | 13 |
| Max Air Flow - Cooling (m³/min) | 9.6 | 9.9 | 11.6 |
| Max Air Flow - Heating (m³/min) | 9.9 | 10.0 | 13.2 |
| Moisture Removal Volume (L/h) | 1.5 | 2.0 | 2.8 |
| nanoe™ X Generator | Mark 1 | Mark 1 | Mark 1 |
Floor Console Outdoor Unit Specification Table
| Outdoor Unit Technical Data | Model Number | ||||||
|---|---|---|---|---|---|---|---|
| CU‑Z25UBEA | CU‑Z35UBEA | CU-Z50UBEA | |||||
| Max Air Flow - Cooling (m³/min) | 28.7 | 34.3 | 39.7 | ||||
| Max Air Flow - Heating (m³/min) | 27.2 | 33.5 | 38.6 | ||||
| Sound Pressure - Cooling Hi (dBA) | 46 | 48 | 48 | ||||
| Sound Pressure - Heating Hi (dBA) | 47 | 48 | 48 | ||||
| Piping Diameter - Liquid Inch (mm) | 1/4 (6.35) | 1/4 (6.35) | 1/4 (6.35) | ||||
| Piping Diameter - Gas Inch (mm) | 3/8 (9.52) | 3/8 (9.52) | 1/2 (12.70) | ||||
| Pipe Length Range (m) | 3 ~ 20 | 3 ~ 20 | 3 ~ 20 | ||||
| Elevation Difference In / Out (m) | 15 | 15 | 20 | ||||
| Pre-Charged Pipe Length (m) | 7.5 | 7.5 | 7.5 | ||||
| Additional Gas Amount (g/m) | 10 | 10 | 15 | ||||
| Refrigerant (R32) / CO₂ Eq. (kg / T) | 0.88 / 0.594 | 0.93 / 0.628 | 1.13 / 0.763 | ||||
| Operating Range Cool (Min - Max °C) | -10 ~ +43 | -10 ~ +43 | -10 ~ +43 | ||||
| Operating Range Heat (Min - Max °C) | -15 ~ +24 | -15 ~ +24 | -15 ~ +24 | ||||
| Height (mm) | 542 | 542 | 619 | ||||
| Width (mm) | 780 | 780 | 780 | ||||
| Depth (mm) | 289 | 299 | 320 | ||||
| Weight (kg) | 33 | 35 | 43 | ||||
| Phase | Single | Single | Single | ||||
| Power Supply (V) | 230 | 230 | 230 | ||||
| Recommended Fuse (A) | 16 | 16 | 16 | ||||
| Connection Indoor / Outdoor (mm²) | 4 x 1.5 | 4 x 1.5 | 4 x 1.5 | ||||
